Vacuum Manipulators

Maximize control over your vacuum applications. Our manipulators enable precise movements and safe handling even in demanding environments.

vacuum_manipulator

Product range

Movement is often essential in vacuum applications. With our high-precision vacuum manipulators, you can accurately position samples or components such as measuring and analysis devices – whether by pushing, rotating, or tilting – while maintaining vacuum integrity.

At Pfeiffer Vacuum+Fab Solutions, we offer both standardized and customized vacuum manipulators to meet your specific needs. Our manipulators feature free flange connections on both sides and an open passage, allowing for a wide range of motion transfers into the vacuum. By combining vacuum manipulators with mechanical feedthroughs, you can efficiently tackle even the most complex positioning tasks.

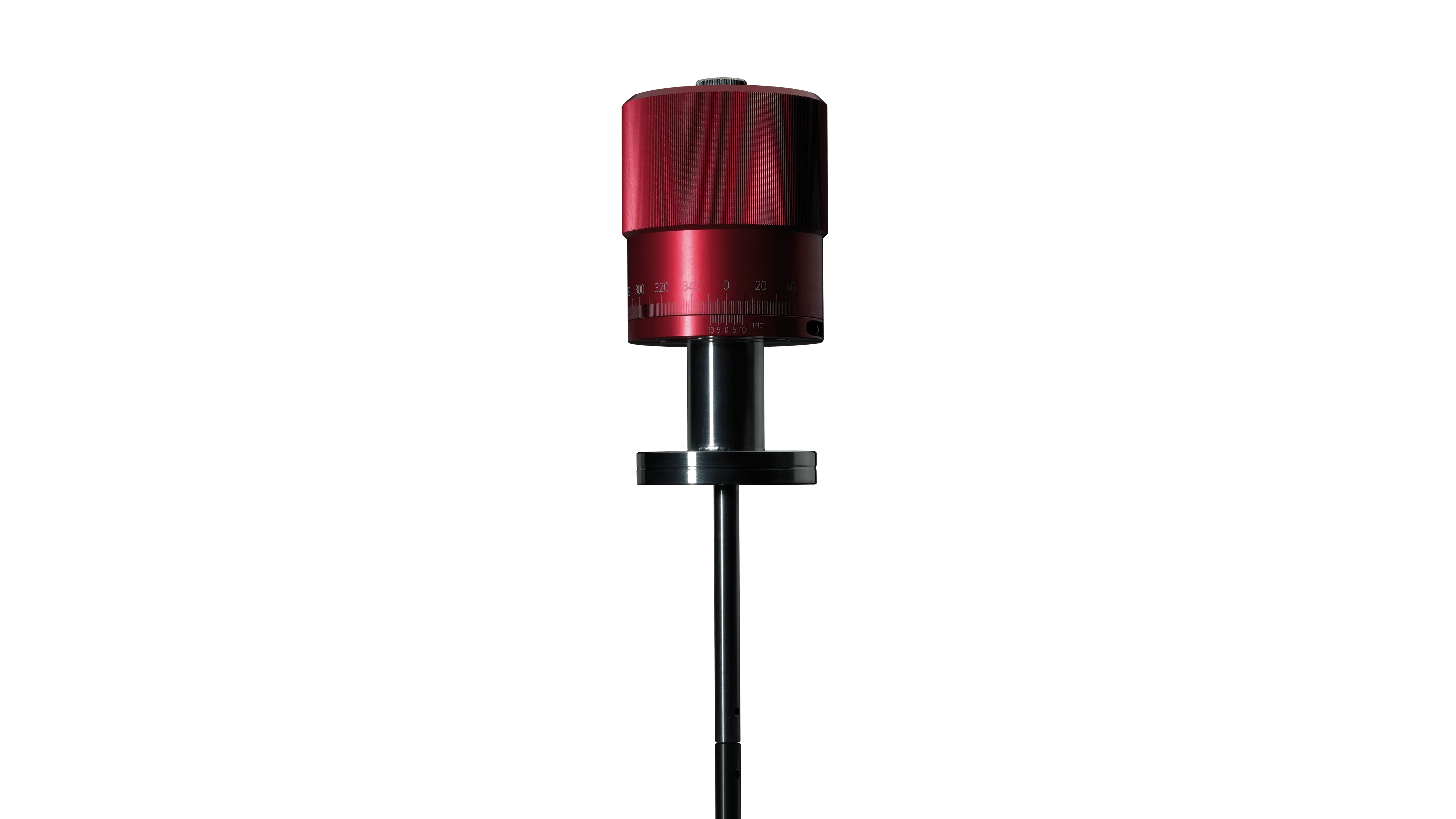

Our extensive selection includes manipulators and mechanical feedthroughs designed for axial and lateral movements, rotations and angular changes. In addition to manually operated options, we also provide motor-driven manipulators for seamless integration into automated processes.
  • port_aligner

    Port aligners

    Ball joints for easy angular adjustment

    Shop now
  • xy_axis_manipulators

    XY-axis manipulators

    Allow the probe location to shift while the probe angle remains unaffected

    Shop now
  • xyz_axis_manipulators

    XYZ-axis manipulators

    The foundation of most sample transfer systems

    Shop now
  • z_axis_manipulators

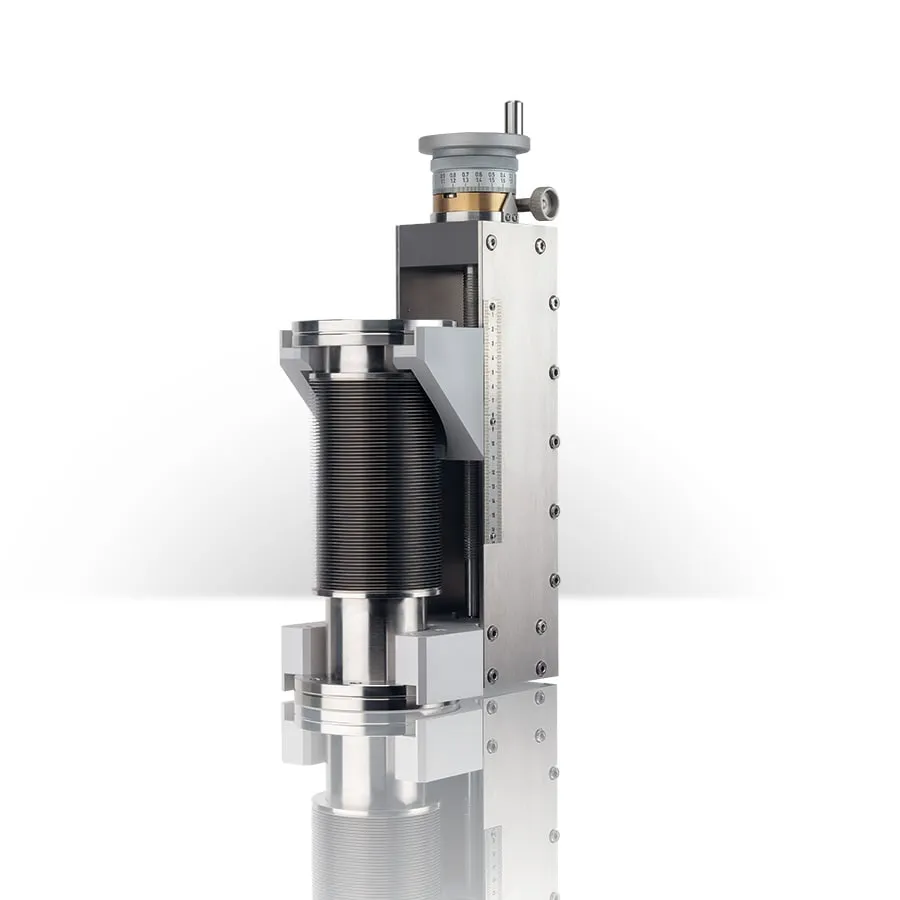

    Z-axis manipulators

    Linear motion devices

    Shop now

Quality and precision

Our vacuum-compatible manipulation systems set the standard for quality and reliability. During development, we emphasize structural rigidity, particularly in the flanges, which have to withstand substantial atmospheric pressure forces, even at larger nominal diameters.

To achieve maximum precision, we have optimized our vacuum manipulators using the finite element method (FEM). The integration of high-quality mechanical components enables exceptionally smooth, backlash-free movements with outstanding reproducibility. Additionally, their low-wear design guarantees long-term reliability and an extended service life.
